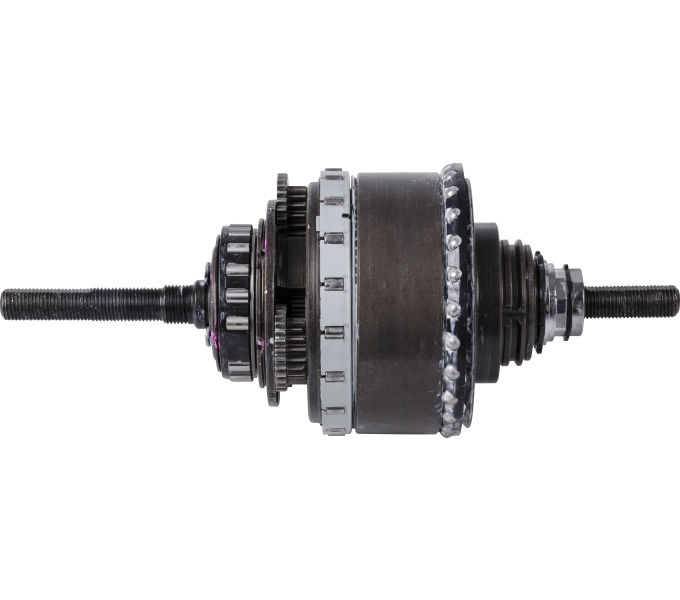

Binnenwerk Shimano Nexus 8 versnellingsnaaf SG-8R31, SG-C6000-8R, SG-C6000-8V (184 mm as)
Aslengte: 184 mm
Model: SG-8R31, SG-C6000-8R, SG-C6000-8V (Nexus 8 met rollerbrake remaansluiting)
Het binnenwerk bestaat uit de volgende onderdelen:
Y34R79000 Stop Ring (f12 / 1.0 mm)
Y34R79010 Stop Ring (f12 / 1.3 mm)
Y34R79020 Stop Ring (f12 / 1.6 mm)
Y36V98020 Ring Gear Unit
Y36V98030 Carrier Unit
Y36V22000 Ring Gear 1
Y34R80000 Ring Gear 1 Stop Ring
Y34R98030 Ball Retainer O (3/16″ x 26)
Y37J98060 Hub Axle Unit (Axle Length 184 mm) & Right Hand Cone w/Seal
Y37J98070 Hub Axle Unit (Axle Length 203 mm) & Right Hand Cone w/Seal
Y34R98050 Clutch Unit
Y34R21000 Return Spring A
Y37J98020 Driver Unit
Y34R98070 Ball Retainer P (3/16″ x 13)
Y37J98080 Right Hand Cone w/Seal
Y34R12000 Driver Plate
Y34R98090 Lock Washer
Y34R09000 Stop Washer
Y33Z07020 Right Hand Lock Nut (3.4 mm)
